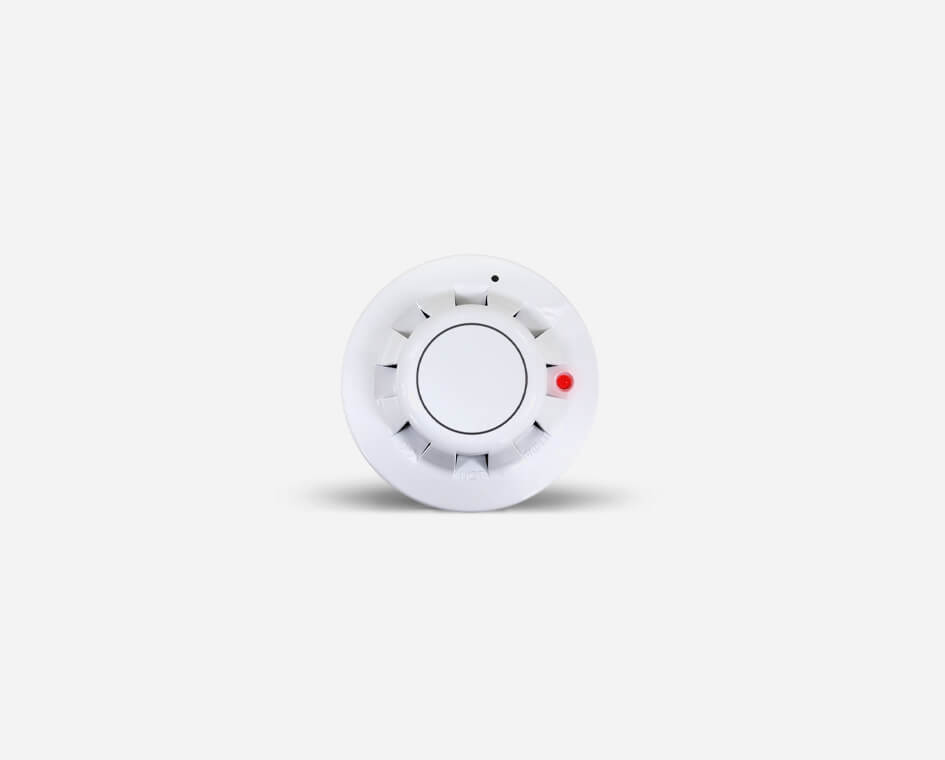

Optical Smoke Detector
- Dimensions: 100mm (⌀) x 50mm (H)
- Detection Principle: Photoelectric
- Current Consumption: 10 amps
- Core Type: 3-Core + ⏚ enhanced
- Weight: 150g
- Materials: white polycarbonate rated V-0 in accordance with UL 94.
£65.00 ex.VAT (£78.00 inc.VAT)
For orders of 5+ units, please contact us or click the button below.
Incorporating well-proven sensing technologies the Ventec SD 400 optical smoke detector has a wide operating voltage of 9-33v.
The detector incorporates a pulsing LED located within the housing of the detector. The external detector moulding has an indicator LED which is clear in quiescent state but produces a red light in alarm.
To restore the detector to quiescent condition, it is necessary to expel any smoke and interrupt the electrical supply to the detector for a minimum of one second.
- DATA SHEET
- INSTALLATION GUIDE
- PRODUCT VIDEO
- INSTALLATION VIDEO
