Ventec KAS S6A 1m2 GFA Pivot Window
AOV Pivot Window

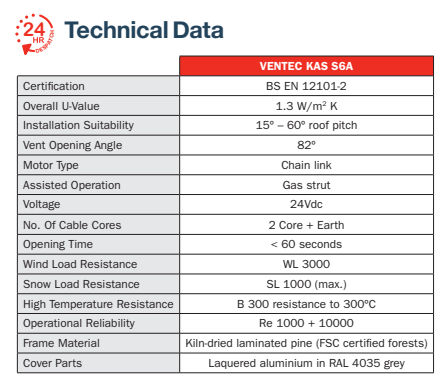

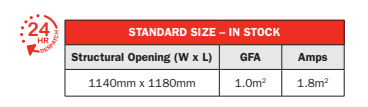

- Structural Opening: 1140mm x 1180mm
- Opening: 82° - Roof Pitch: 15°-60°
- Geometric Free Area: 1.0m2
- Voltage: 24v
- Current: 1.8 amps max
- Flashing Kit: Additional
Price range: £850.00 through £1,000.00
For orders of 5+ units, please contact us or click the button below.

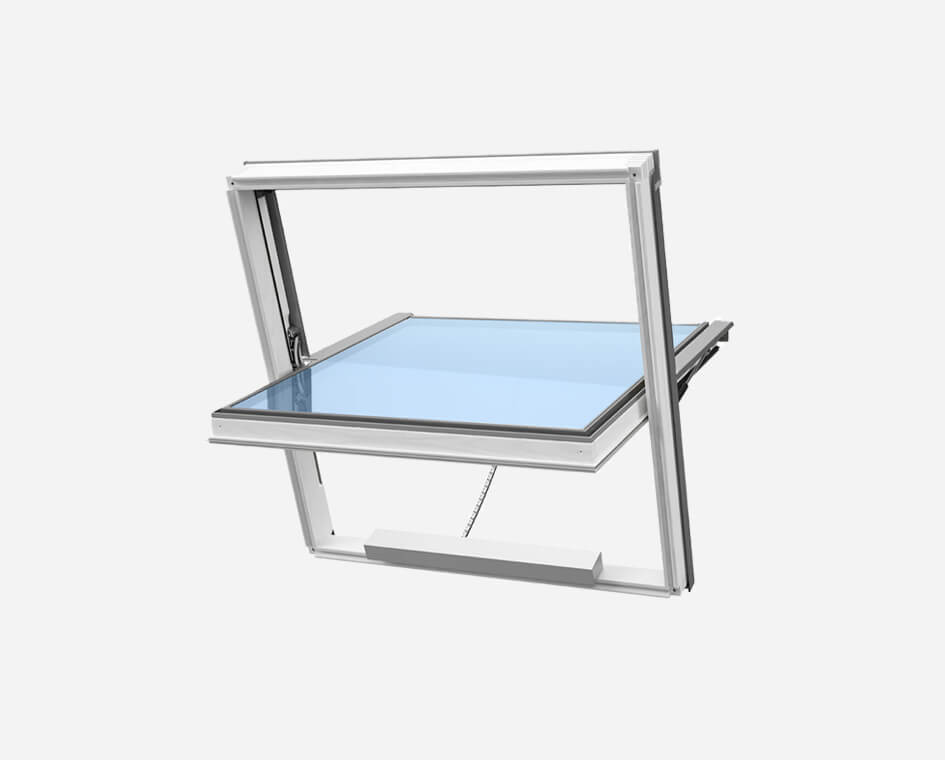

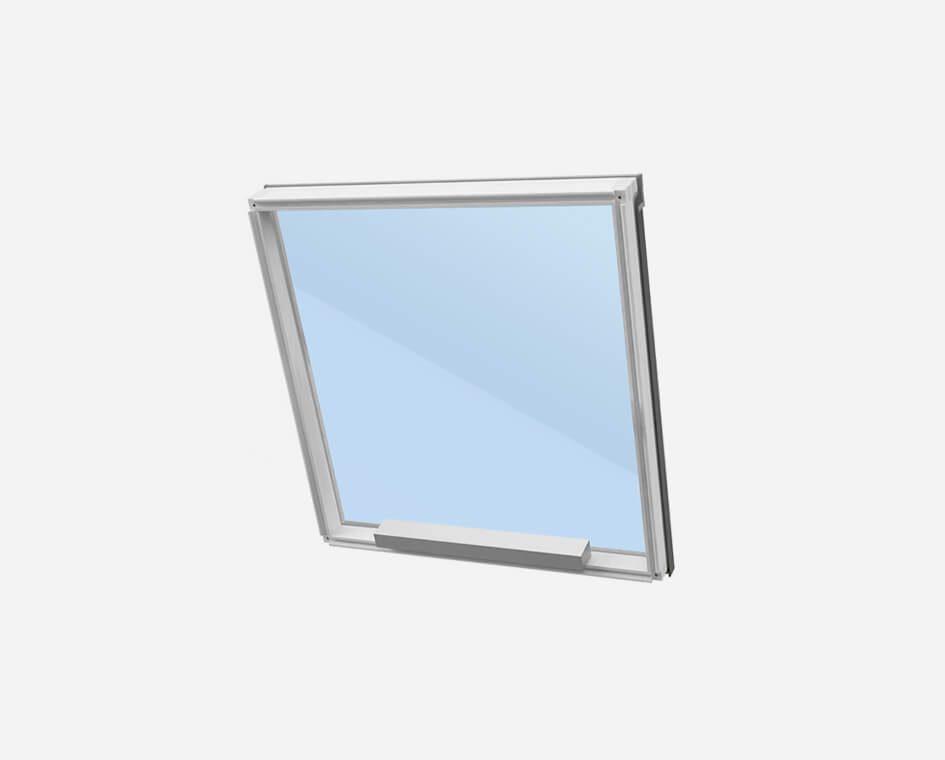

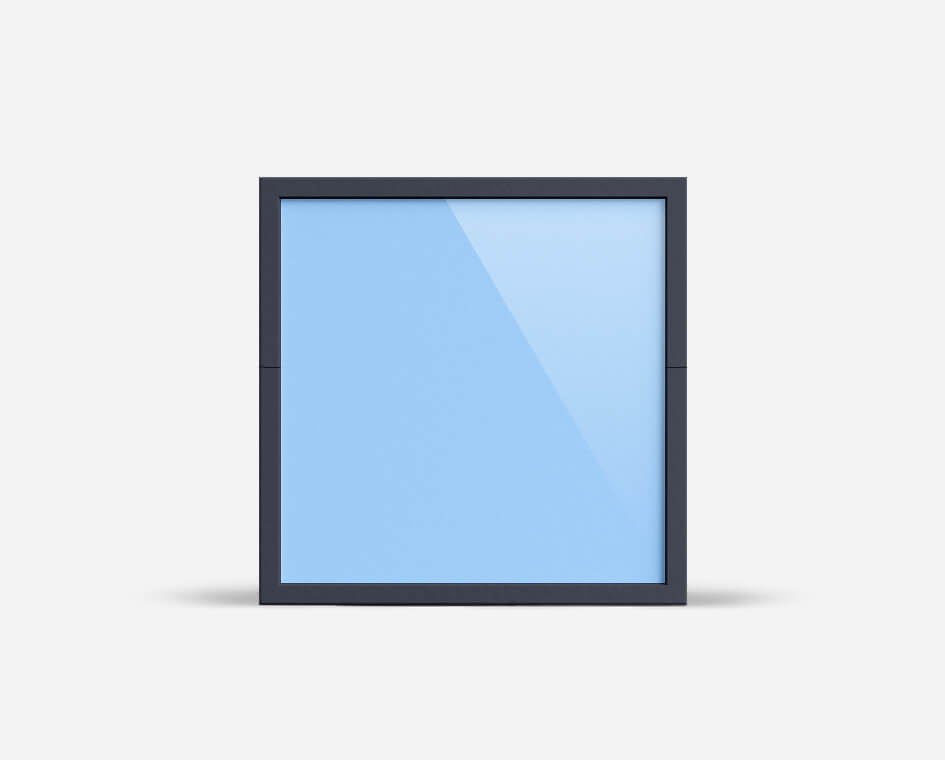

The Ventec KAS S6A central pivoting window, with built in 24Vdc actuator, opens up to 82º to vent excess smoke and heat during a fire. Also suitable for daily use ventilation.
Made of kiln-dried laminated pine from FSC certified forests. Fungicide protected and supplied with a smart, white painted finish. Cover parts are lacquered aluminium in RAL 7043 grey.
Suitable for facade mounting or roof pitches of 15° to 60°, BS EN 12101-2 certified, with a toughened glass outer pane and laminated internal safety glass. Along with, gas strut assisted operation and easy installation.
NB. Additional Flashing Kit required for installation, please contact our sales team to discuss your tile/roof type.
- DATA SHEET
- INSTALLATION GUIDE
- PRODUCT VIDEO
- INSTALLATION VIDEO
