OSTRO
1100cm x 1100 mm AOV Roof Vent
£1,599.00 ex.VAT (£1,918.80 inc.VAT)
For orders of 5+ units, please contact us or click the button below.

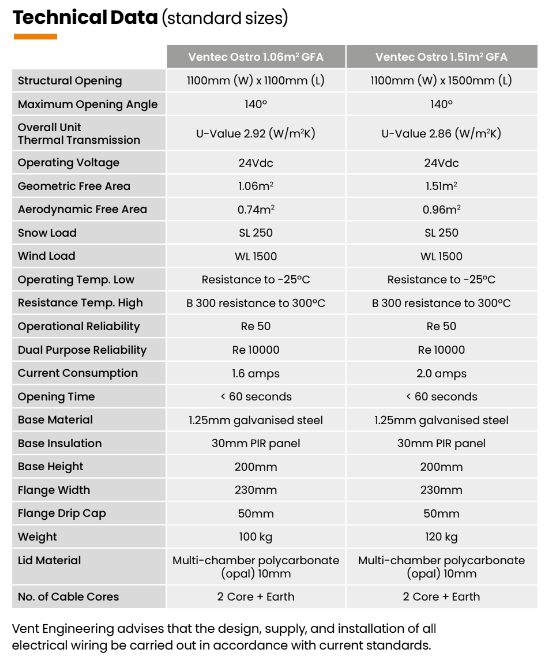

Key Features:
- Clear opening: 1100 x 1100 mm
- Free area: 1.06 m2
- Glazing: multi-chamber polycarbonate panel of 20mm PCA; opal; Ug=2.2 W /m2K
- Electric control: 24 V / 1.6 A
- Opening Angle: 140 degrees
- Finish: Mill finish aluminium as a standard
Fast Shipping
UK mainland delivery
UK Stock
All products listed are in stock
Full Technical Support
Online and phone support
Secure Payment
Safe online payment options
Product Description
Ventec AOV Ostro 1m2
Ostro Vents can be used on both flat and sloping roofs up to 15° in various types of facilities such as: production and storage halls, logistic centres, public buildings, retail and service buildings and residential buildings. The Ventec Ostro is EN12101-2 certified and Approved Document L compliant.
Straight base of height 200mm made of galvanised sheet of 1.25 mm thickness. Circumferential strip in the upper part of base, made of galvanised steel sheet, used for fixing roof work.
Leaf glazing: cellular polycarbonate opal 10mm panel.
Smoke exhaust
Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
Lighting
Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

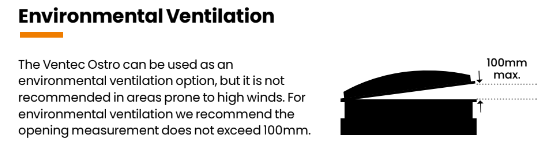

Ventilation
Provides air supply and daily ventilation.
Additional elements
» wind deflectors » inlet deflectors » safety net » limit switch » anti-burglar grid
Heat transfer
product allows to achieve high heat transfer Urc ≥ 1,3 W/m²K.
Application
Wide scope of shapes and sizes enable installation on warehouses, public services buildings, shopping malls, commercial and sport objects.
